Description

Supreme Performance
Every NSOevo3S display features a iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSOevo3’s powerful core, and complements any helm design from ultra-modern to timeless classic.

Ultimate Clarity with Intuitive Touchscreen Control
NSOevo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.

Fully Connected

Built-in wireless connectivity links NSOevo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, and integration with an extensive range of 3rd party technologies.

Key Features

iMX 8 Integrated six-core processor for superior performance
Ultra-sharp, Full HD 24-inch display
Seamless touchscreen control of your entire connected SIMRAD® system
Low-profile glass helm styling

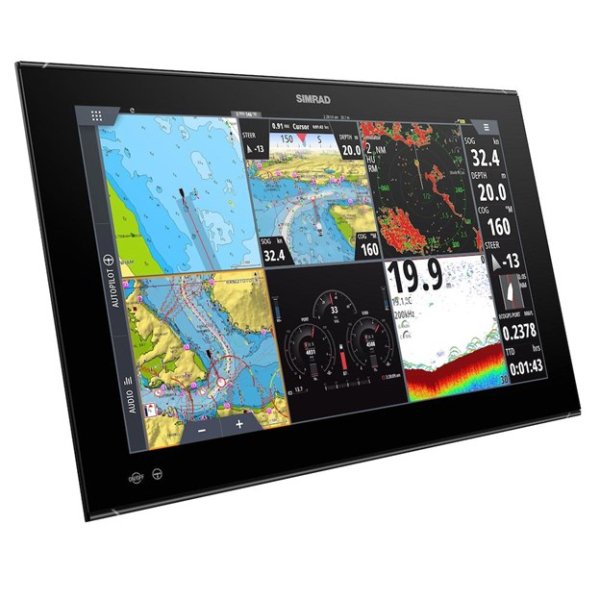

Extended visibility with six-panel split screen option
Connect with smartphones, tablets, and internet hotspots
Integrate with an extensive range of 3rd party technologies.

Specifications

Physical
Dimensions 16″ WxHxD 400.1 x 260 x 83 mm (15.75 x 10.24 x 3.27″) With bracket: 474.9 x 307.5 x 222.5 mm (18.7 x 12.1 x 8.76″)
Dimensions 19″ WxHxD 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27″) With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45″)
Dimensions 24″ WxHxD 625.1 x 386 x 83 mm (24.61 x 15.29 x 3.27″) With bracket: 648.9 x 388.5 x 212.5 mm (25.55 x 15.29 x 8.37″)
Weight 16″ 3.9 kg (8.6 lbs.)
Weight 19″ 4.8 kg (10.5 lbs.)
Weight 24″ 7.8 kg (17.2 lbs.)
Compass safe distance 50 cm (19.7″)
Mounting options Panel or bracket mount (use optional heavy duty bracket (000-13547-001)
Environmental
Operating temperature range -15°C to 55°C (5° F to 131° F)
Storage temperature range -20°C to 60°C (4°F to 140°F)
Electrical
Supply Voltage 12/24 V DC (10 – 31.2 V DC min – max)
Power consumption (max) 16″ 40 W – 4 W
Power consumption (max) 19″ 50 W – 4 W
Power consumption (max) 24″ 80 W – 4 W
Fuse rating 16 6 A @ 12 V DC
Fuse rating 19 7 A @ 12 V DC
Fuse rating 24 10 A @ 12 V DC
Connectivity
Ethernet 3 x RJ 45, 1 Mbit ports. Adapt to 5 pin yellow using Adapter cable 000-11246-001
Wireless Internal 802.11b/g/n
NMEA2000 1 x NMEA 2000 Micro-C port, 1 LEN
J1939 1 x J1939 Micro-C port
NMEA 0183 2x NMEA0183 (IEC61162-1), 2x NMEA0183-HS (IEC61162-2)
Composite Video In 2x composite video (BNC)
HDMI In 1x high definition video (1080p, HDCP 1.4, HDMI-A) (Note: will not pass through HDMI, HDCP from HDMI input port)
Internal GPS No
Storage
External storage 1 x Micro SD card slot or use optional USB dash mount card reader with 2 x Micro SD slots. Max. card size 32GB. Larger if formatted to NTFS
Internal storage 16 GB
Display
Screen resolution (all sizes) 1920×1080
Brightness 1200 nits
Screen size and type 16 IPS 15.6″ optically bonded TFT
Screen size and type 19 AHVA 18.5″ optically bonded TFT
Screen size and type 24 MVA 24″ optically bonded TFT
Viewing angles 80° top/bottom, 80° left/right
Control Full touch screen (multi-touch), OP50 remote controllers
Applications
Cartography Compatible with C-MAP (MAX N, MAX N ), Insight, Navionics (Gold, NAV Platinum ) , NV Digital (Raster US Charts): CMAP enhanced of U.S.A built in (Rest of world charts required. world base map only)
Radar Compatible with Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar
Sonar Compatible with: SonarHub, S5100, StructureScan3D network echo sounder modules
Autopilot Integration Full auto pilot control and commissioning
Autopilot steering modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Autopilot manoeuvres turn patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Weather SiriusXM via WM-3 (USA only), GRIB
AIS Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K)
Multimedia via SonicHub2, FusionLink, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)

In the box :
NMEA 2000 Micro-C Low Loss 4 Way JoinerN2K-PWR-RD Network Power NodeTR-120-KIT Network Terminator KitNMEA 2000 6ft Network Extension CableRJ45 – Ethernet Adapter CableMO16/19/24 Cable Retention BracketRear mount bracket kit for MO16/19/24 monitorsMO16 BezelsSuncover, Simrad 24″ Monitor

Availability:26 In Stock
Model:NSOevo3S 24 Inch
Brand:Simrad
