Description

Description

12 kW continuous power – powerful propulsion like a 25 hp combustion engine
TorqLink data interface – enables fast data exchange between TorqLink components without gateway
Electric tilting device for comfortable operation
Easy handling thanks to low-voltage design (48 volts)
Very robust construction – corrosion-protected, seawater-proof and waterproof all around (IP67)
Battery connection cable with water-protected battery pole terminals (IP 66) for connecting up to two Power 48-5000
Variants: Short shaft S: 38.5cm shaft length, long shaft L 51.2cm shaft length, extra long shaft XL 63.9cm shaft length
Weight (without cable & main switch): 59.8 kg (S), 61.3 kg (L), 62.5 kg (XL)
To operate the Cruise 12.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery

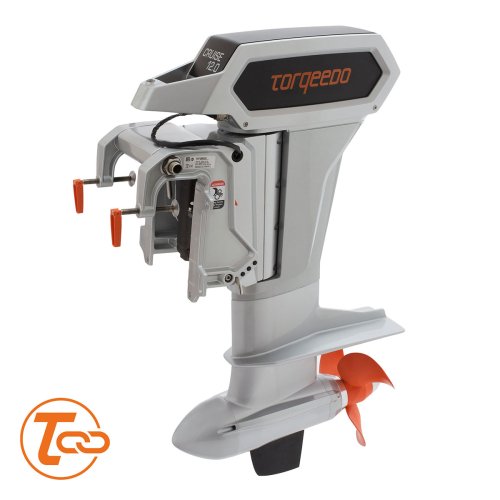

Cruise 12.0 R TorqLink

Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 12.0 is a 48-Volt, 25 horsepower-equivalent outboard perfect for boats up to 10 tons. The Cruise 12.0 R ships with Torqeedo’s advanced communication system, TorqLink (see below for further information), which allows faster and more accurate data sharing between system components.

Cruise 12.0 R TorqLink – Benefits:

High-efficiency outboard with 12,000 W input power, equivalent to a 25 HP petrol outboard
Pair with two or more Power 48-5000 for best performance and accurate range/runtime functionality
This model ships with remote steering link arm
Your choice of TorqLink throttles (we recommend part number 1976-00 TorqLink throttle with colour display)
Rugged aluminium pylon with integral fin – extra protection when running aground
Highest-grade seawater-proof aluminium for long service life, even in the harshest conditions
Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties – ships with anode set for fresh and saltwater

TorqLink is Torqeedo’s advanced electronics communication system developed for Deep Blue and now available for select Cruise motors, throttles and Power 48-5000 batteries. All products marked TorqLink will communicate seamlessly at startup. A TorqLink Gateway (2217-00) allows you to include components without TorqLink in your system.

Cruise 12.0 with 2 x Power 48-5000
As tested on My-RIB 420

Speed in km/h*    Running time in hh:mm
Slow    5.9    10:00
Half throttle    12.7    01:25
Full throttle    28.0    00:50

Technical Data Cruise 12.0 R TorqLink

Input power in watts    12,000
Propulsive power in watts    6720
Comparable petrol outboards (propulsive power)    25 HP
Comparable petrol outboards (thrust)    25 HP
Maximum overall efficiency in %    56
Static thrust in lbs*    ≤ 405
Integrated battery    –
Nominal voltage    48
Final charging voltage    –
Weight in kg (w/o cables & main switch)    59.8 (S), 61.3 (L), 62.5 (XL)
Motor weight without battery in kg    –
Weight of integrated battery    –
Shaft length in cm    38.5 (S) / 51.2 (L) / 63.9 (XL)
Standard propeller
v = speed in km/h at p = power in watts    v22/p10k
Alternative propeller options    v32/p10k & v15/p10k
Maximum propeller speed in rpm    1,400
Control    Remote throttle
TorqLink    Yes
Steering    Provision to connect to standard remote steering
Tilting device    Electrohydraulic tilt device with overload protection.
Tilt angle    -45°
Trim device    Manual, 4-step
Integrated on-board computer    Yes
Stepless forward/reverse drive    Yes
