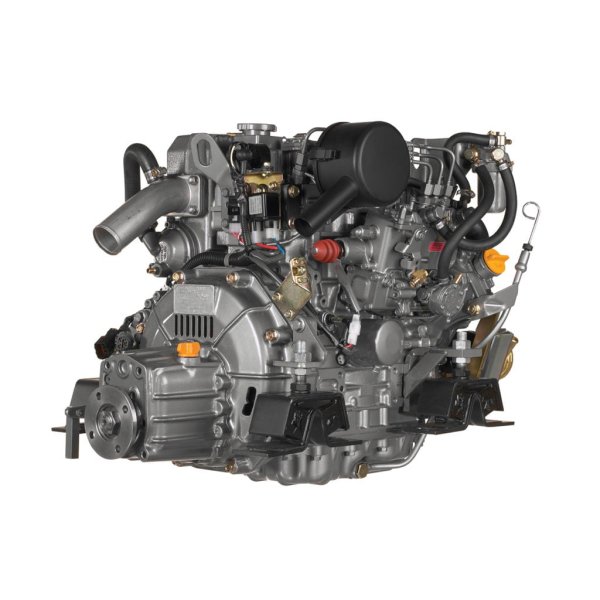

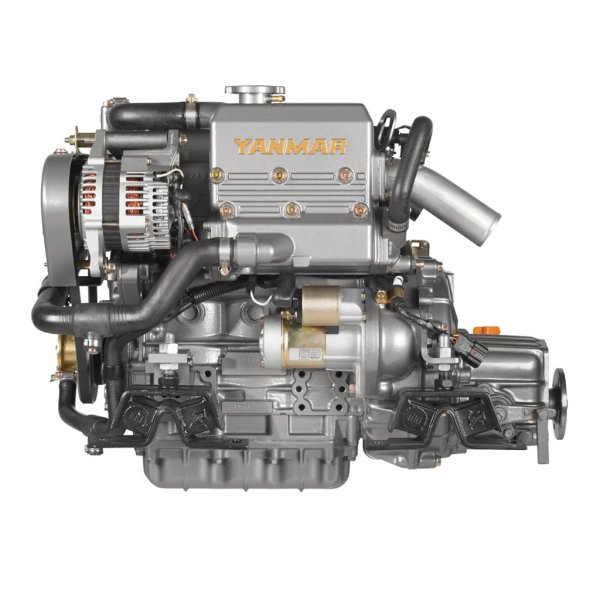

YM Series NEW 3YM30 (29HP/21kW) More displacement, more torque, quieter, cleaner running and featuring an all-new three-cylinder block and combustion system. This is the latest in high output marine diesel technology.

Specifications

Rated Output
21.3 kW / 29.1 mhp

Rated Speed
3200 rpm

Displacement
1.266 L / 77 cu. in

No. of cylinders
3 cylinders

Cylinder Bore x Stroke
80 mm x 84 mm / 3.15 in x 3.31 in

Combustion system
Indirect Injection, In-line Pump

Aspiration
Natural

Alternator
12V – 125A

Dry weight without gear
127 kg / 280 lbs

Dimensions
715 mm x 485 mm x 545 mm

Controls
Mechanical

Certifications
RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC

NOTE:

1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM2P-1 marine gear & height includes U-type elbow
(Dimensions may vary with other gears/elbow)

Standard Engine Package

Exhaust mixing elbow [L-type]
Alternator 12V – 125A
B20 panel
Flexible mounts
Expansion tank for fresh water cooling system
Electric stop solenoid
Belt safety cover

Optional Accessories

High-riser mixing elbow [instead of L-elbow]
Extension wire harness [4m, 6m]
Dual harness [for 2nd station]
TFX Sidemount control head
Hot water kit with cocks
Extension saildrive leg [50 mm]
Propeller cone nut kit SD25
On-board spare parts kit
